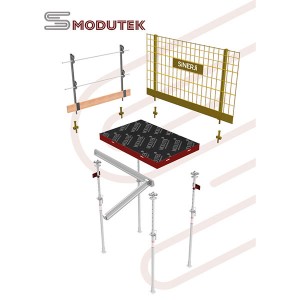

Modutek Aluminum Slab Formwork Systems
Modutek Aluminum Slab Formwork Systems are a modern modular slab (ceiling) formwork solution featuring a wide range of applications in the construction sector, offering safety, lightweight, and fast installation. Developed to eliminate the time, labor, and cost disadvantages brought by traditional wooden or heavy steel slab formworks, Modutek is an innovative engineering product where vertical and horizontal elements come together in perfect harmony. Offering high efficiency in the most demanding slab concrete pouring processes of professional construction sites, this system fully meets the speed, quality, and safety expectations of modern construction projects.
Product Features
What is Modutek Aluminum Slab Formwork System?
Modutek Aluminum Slab Formwork Systems are a modern modular slab (ceiling) formwork solution featuring a wide range of applications in the construction sector, offering safety, lightweight, and fast installation. Developed to eliminate the time, labor, and cost disadvantages brought by traditional wooden or heavy steel slab formworks, Modutek is an innovative engineering product where vertical and horizontal elements come together in perfect harmony. Offering high efficiency in the most demanding slab concrete pouring processes of professional construction sites, this system fully meets the speed, quality, and safety expectations of modern construction projects.
Outstanding Technical and Engineering Features of the Modutek System
The success of formwork systems on-site in modern construction projects is directly measured by their technical details and practical usability options. Modutek offers superior strength and lightness to construction sites thanks to its high-quality aluminum alloy components processed with the latest production technologies.
Pin Connection Principle and Fast Assembly
One of the greatest engineering advantages of the Modutek system is the combination of vertical and horizontal elements through a smart pin-connection principle. Without the need for complex screw, nut, or bolt tightening processes, this joining method—carried out solely with practical connection pins—shortens assembly and disassembly times to record levels. Teams can form large areas in the shortest possible time and save significant time by keeping the construction site workflow uninterrupted.
Lightweight Panel Structure and Ergonomic Use
Featuring a lightweight aluminum panel structure unlike heavy steel systems, Modutek minimizes the physical fatigue of site workers. Thanks to its ergonomic design, it can be easily transported by human power, comfortably lifted to the slab level, and positioned quickly. This lightweight structure also reduces dependence on crane usage, providing operational flexibility and cost advantages in projects.
-
Ergonomic handling and fast installation with lightweight panel structure
-
Easy transport with panels weighing up to 35 kg
-
Large casting capacity with 2.16 m² panel surface
-
Safe formwork removal with integrated anti-fall protection system
-
Integrated walking platforms providing safe circulation areas
-
Stable assembly with balancing plates and telescopic supports
-
Reusability for beam applications up to 60 cm in height
-
Design that creates a spacious and ventilated working area
-
Configuration options suitable for complex geometries
-
Precise load transfer with primary and secondary setting beams
-
High-quality materials offering long service life
-
Logistics convenience with the use of a single-type head
-
Strong supporting structure with balancing plates and scaffold posts
| Product | Category | Material | Weight (kg) | Dimensions (cm) |
|---|---|---|---|---|
| COMPONENTS | ||||
| Mold Panel 100 | Panel | Aluminum | 16.20 / m² | 90×180, 60×180, 30×180 |
| Mold Panel 50 | Panel | Aluminum | 10.20 / m² | 100×90, 50×90, 25×90 |
| Primary Setting Beam | Beam | Aluminum | 6.40 – 8.25 | 100 |
| Secondary Setting Beam | Beam | Aluminum | 5.76 | 105 |
| Balancing Plate | Plate | 3 mm Galvanized Steel | 13.50 | 47×120, 40×180 |
| Telescopic Shore + Tripod | Shore | Steel | 14.80 – 29.40 | 180–300, 180–350, 200–350, 240–400, 290–450 |
| ACCESSORIES | ||||
| Security Adapter | Accessory | Steel | 1.97 | - |
| Starter | Accessory | Aluminum | 0.65 | - |
| Form Head | Accessory | Aluminum | 1.15 | - |
| Cone | Accessory | Aluminum | 2.40 | - |
